Fitouts to suit Troopys with a roof conversion.

We have three popular designs to get you on your way for your next adventure. Fitouts designed for a roof conversion allow for higher profile cabinetry with full standing height within the vehicle, plenty of bench space and maximum storage. All designs feature our classic U-shape configuration with finger slide out bed and allow for plenty of added extras to be included. Choose from the base models of V1, V2 or V3, or work with our team to customize a design.

At Odyssey, we understand that dogs, kids, surfboards, or hey, even identical twins are important, and they need a spot too!

Let us help you design your ultimate fit out!

V1

V2

V3

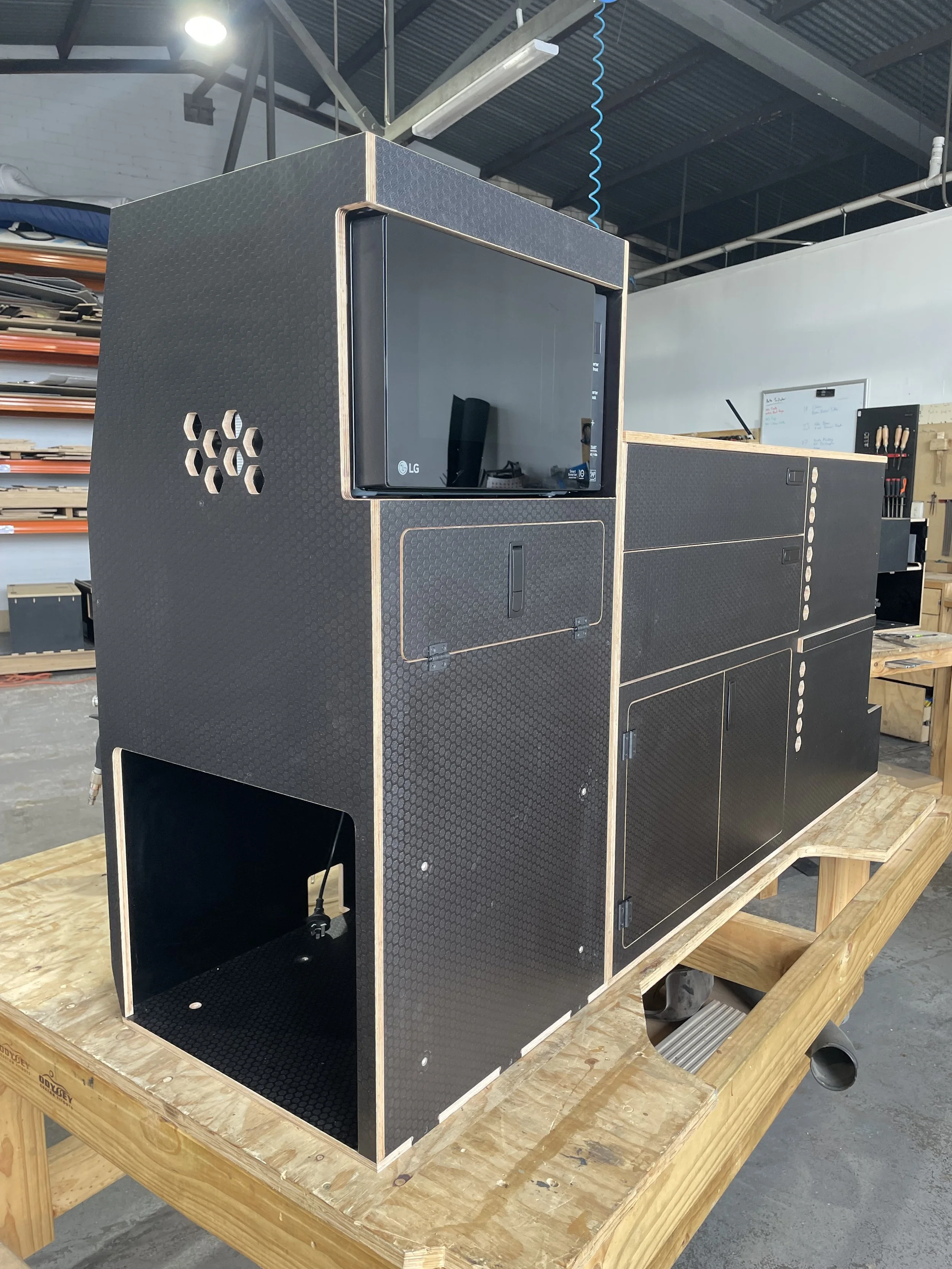

V1 Cabinetry

V1 Cabinetry

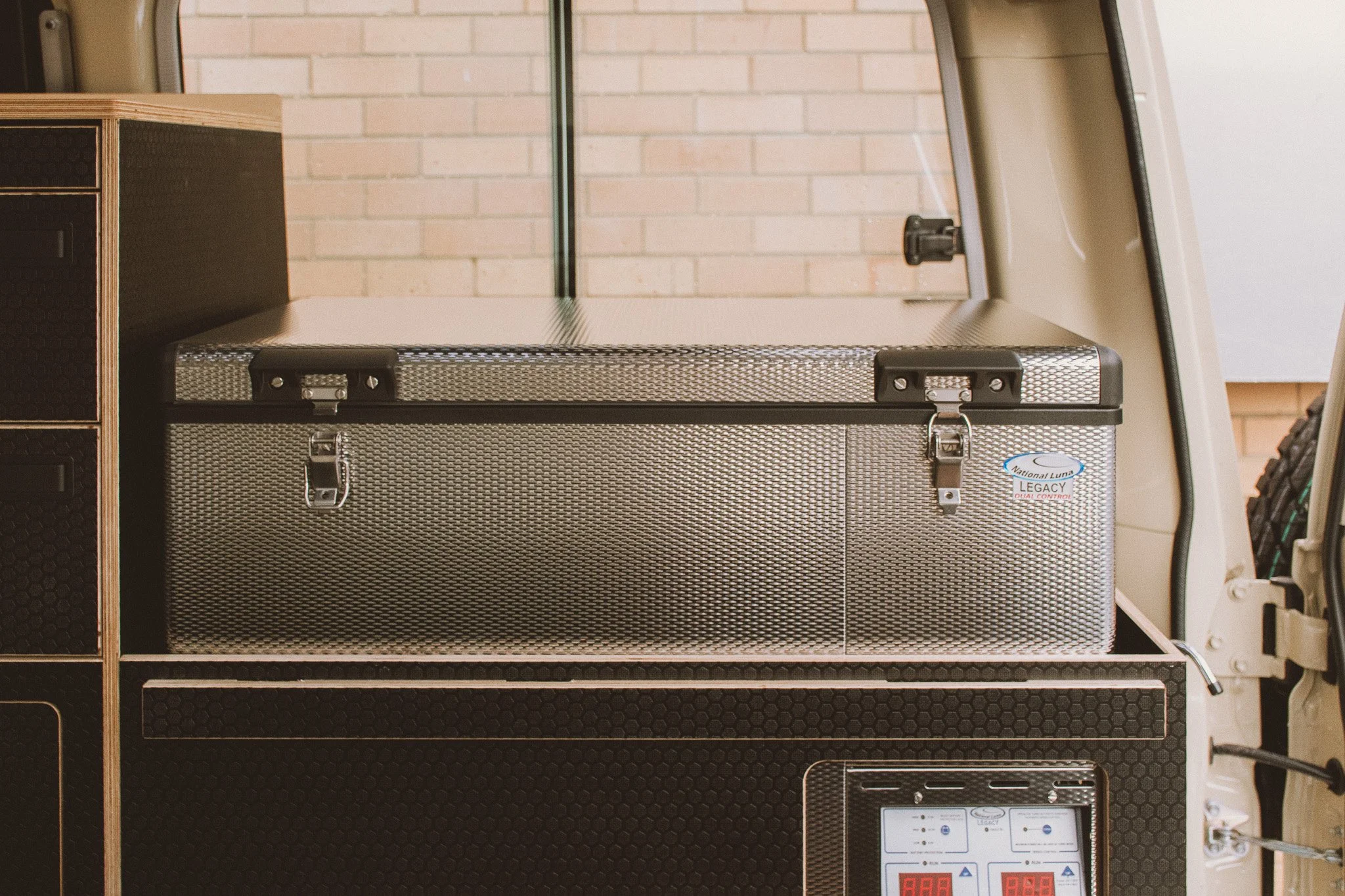

Odyssey V1 fitout for a Troopy with a poptop. A popular design with rear door fridge access and storage spaces customizable to suit your needs. With the V1 design you can still include a travel buddy oven, toilet and hot water system. Every build has an electrics cabinet located behind the driver’s seat that is compatible with every 12V brand. We recommend using National Luna fridges for the V1 design because of the taller, skinnier profile which gives you a larger bed and a wider passenger seat drawer/kitchenette. We can however, customize to suit other fridges.

Product Details - standard V1 spec includes:

  • In Black Hex, White or Natural birch ply and natural birch ply on bed and work tops finished in matt varnish

  • U shape configuration

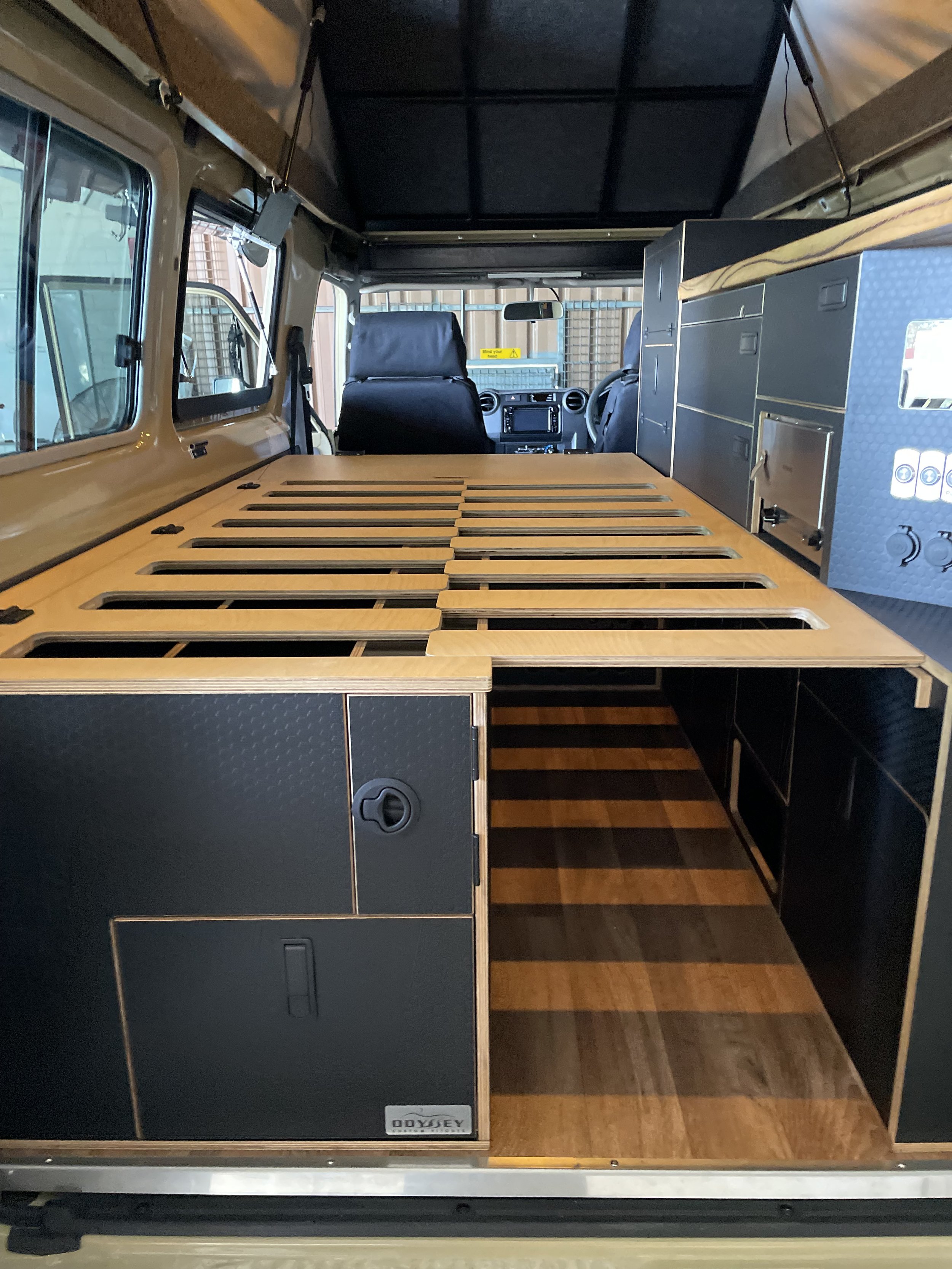

  • Odyssey's own unique finger sliding bed - 490mm h

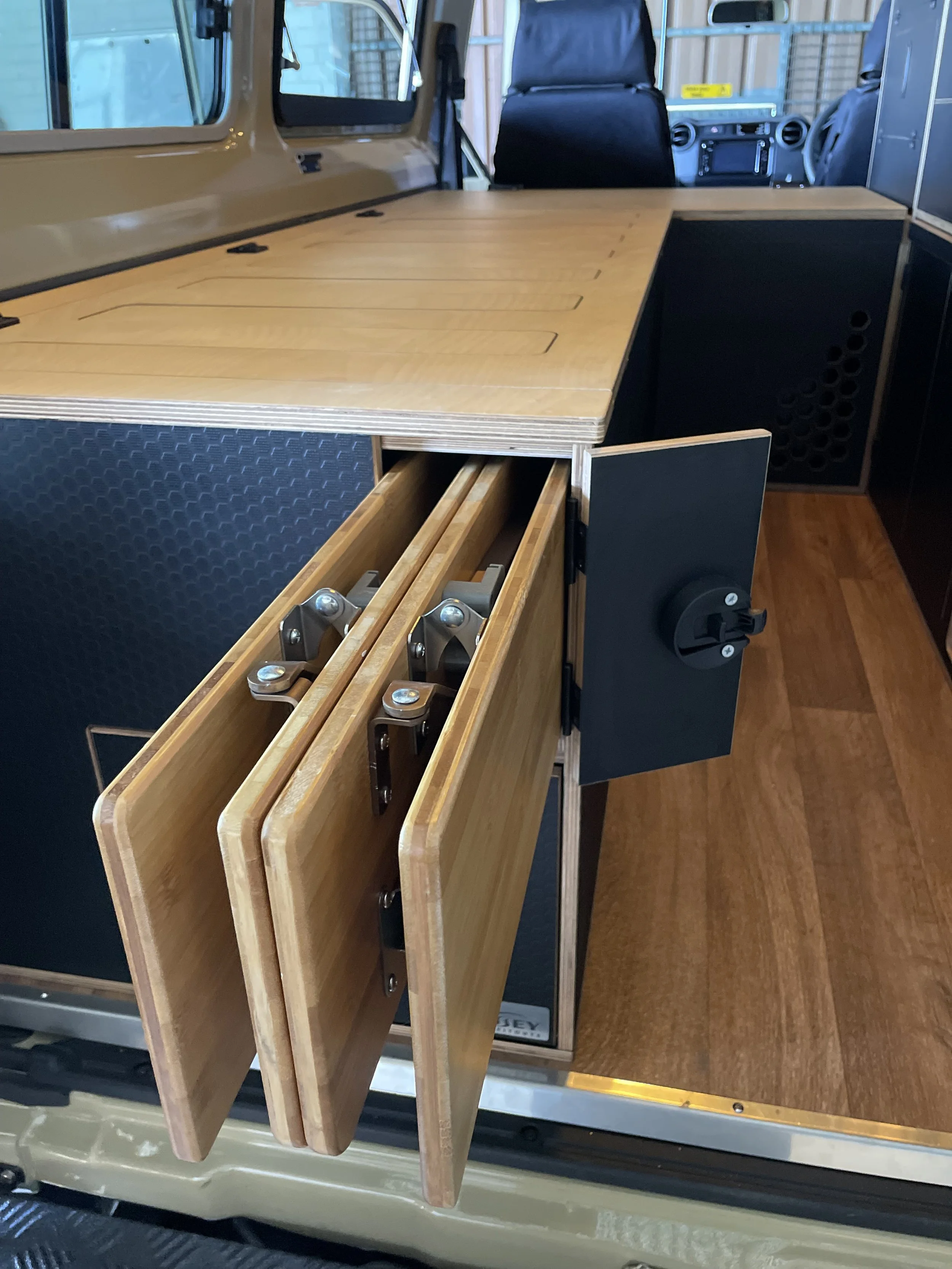

  • Passenger side seat box option to house a table compartment for Zempire bamboo table (sold separately)

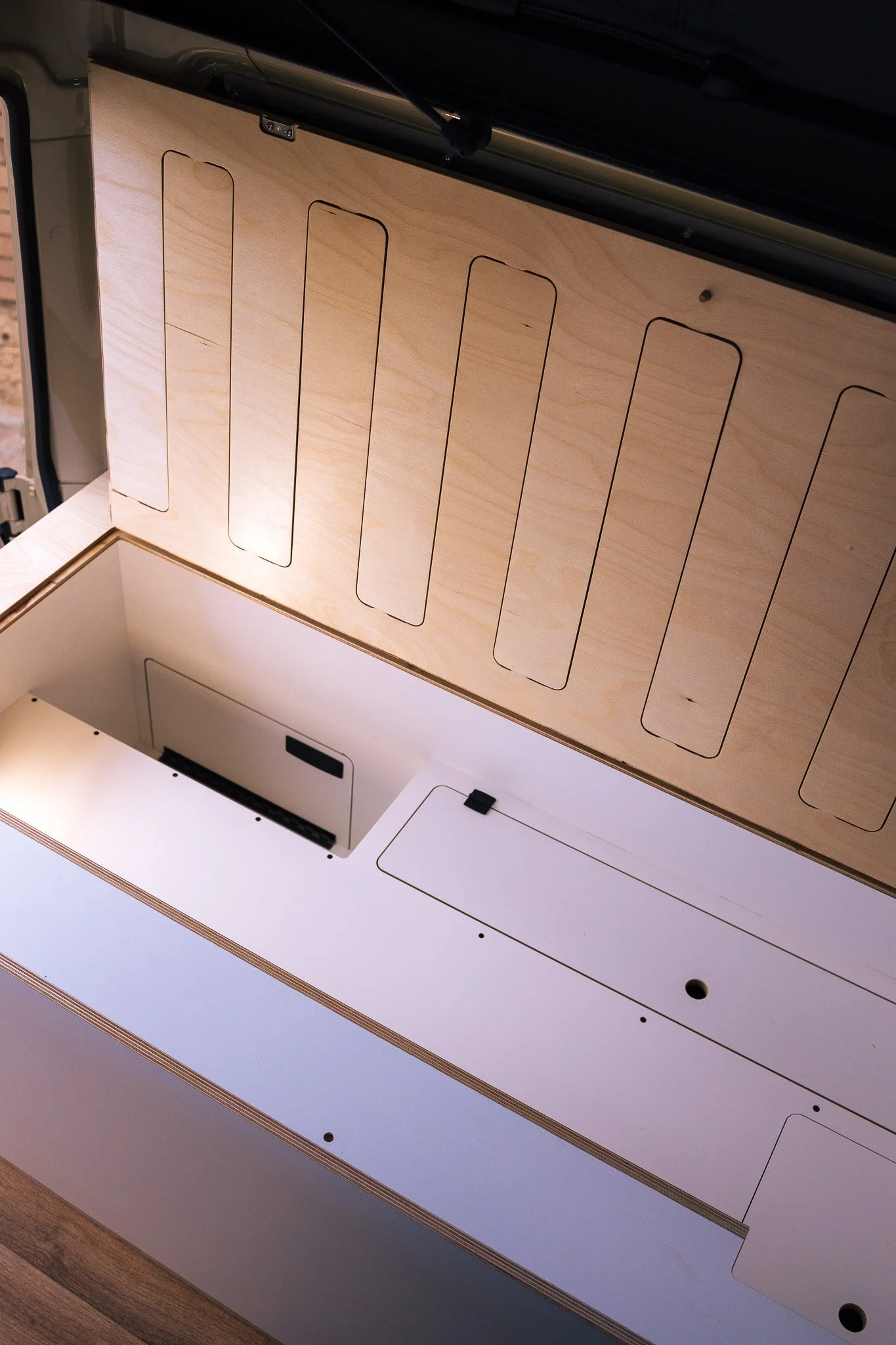

  • Large storage box behind passenger seat

  • Large Drawer on teflon slides.

  • Bottle Jack door holder

  • Tall box behind drivers seat to house electrical system below. 2 cupboards and tray top. Cut outs can be made for electrical outlets and screens if requested - 1070mm h

  • Cabinet with 2 drawers and lift up desk on top drawer, bi fold door below. The space can house Duoetto 10L Hot water system (sold separately) - 850mm h

  • Fridge box to house a National Luna 60L fridge (sold separately) with storage below

  • Walkway - 350mm wide

  • Bed dimensions - 1920 x 970

  • Bed Height 490mm

  • Troopy Floor Plate

    - Commercial grade vinyl

    - Stainless steel end capping

Price

POA

Recommended Add Ons

  • Premium Troopy Cushions

  • Kitchenette in large pull out drawer

  • National Luna Fridge

  • Zempire 4 fold table

  • V1.2 is a small adjustment to the V1 model with the pull out fold up table positioned horizontally instead of vertically.

    This allows for a lower bench seat throughout the vehicle or larger drawer space.

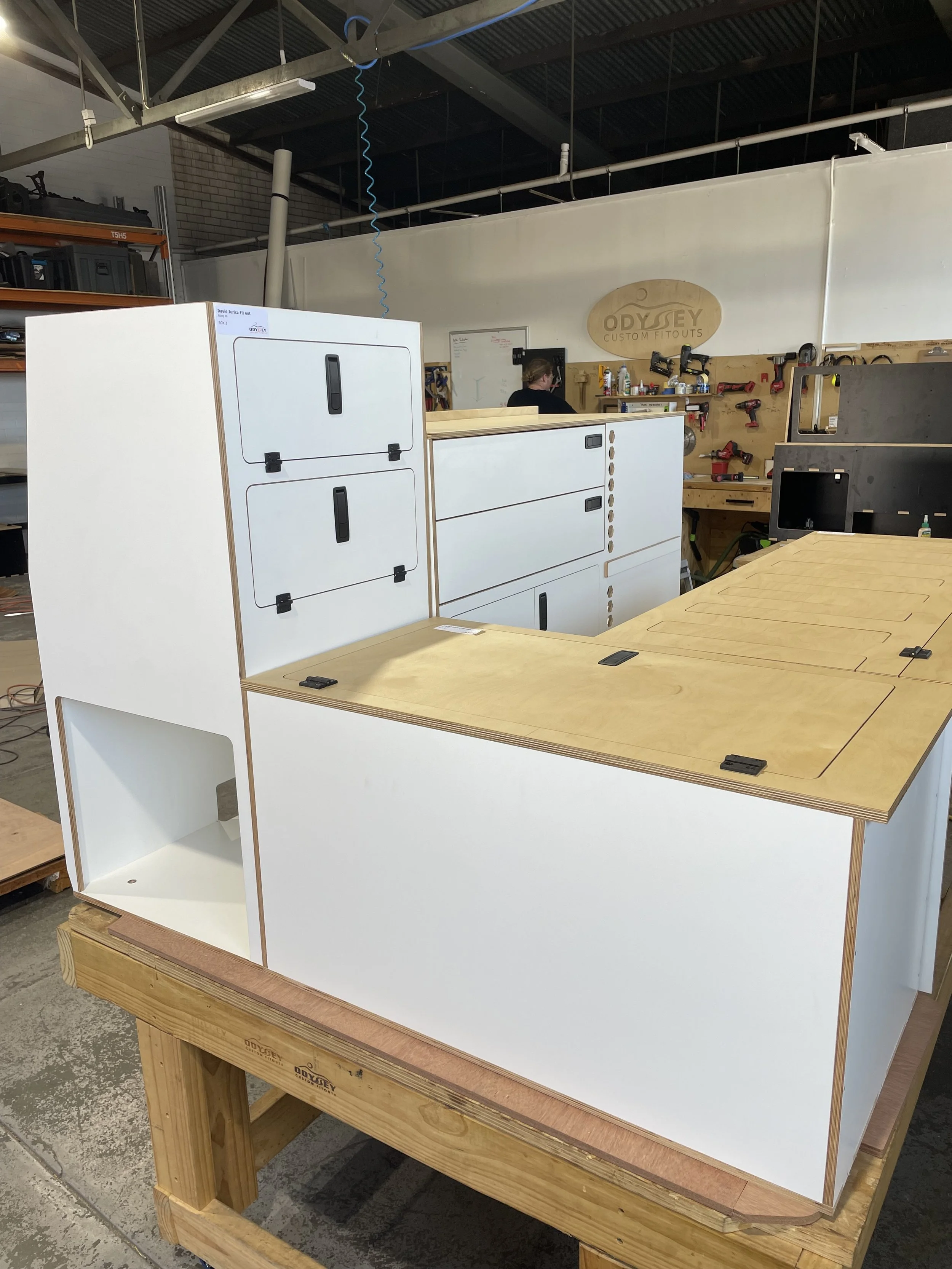

V2 Cabinetry

V2 Cabinetry

Odyssey V2 fitout for a Troopy with a poptop. Featuring a full-length work surface and easily accessible space to best suit the Bushmans 85L upright fridge. Every build has an electrics cabinet located behind the driver’s seat that is compatible with every 12V brand. Plenty of room for extras such as an oven/microwave, pull out kitchenette, hot water system and all electrics.

Product Details - standard V2 spec includes:

  • In Black Hex, Natural or White Birch ply and natural birch ply on bed and work tops finished in matt varnish.

  • Passenger side seat box to house a table compartment for Zempire bamboo table (sold separately), large drawer on teflon slides.

  • Odyssey's unique finger sliding bed - 490mm h

  • Large storage box behind passenger seat

  • Tall box behind driver’s seat to house electrical system below. 2 cupboards and tray top. Cut outs to be made for electrical outlets and screens if requested. Shower compartment accessible via window or gull wing - 1070mm h

  • Long drivers side cabinet, one long worksurface with 2 drawers and lift up desk on top drawer, bi fold door below, the space can house Duoetto 10L hot water system (sold separately). To suit Bushmans 85L upright fridge (sold separately) with storage below.

  • Walkway 350mm wide

  • Bed dimensions 1920mm x 925mm

  • Floor Plate

    - Commercial grade vinyl

    - Stainless steel end capping

Pricing

POA

Recommended Add Ons

  • Premium Troopy Cushions

  • Kitchenette in large pull out drawer

  • Bushmans Upright Fridge

  • Zempire 4 fold table

V3 Cabinetry

V3 Cabinetry

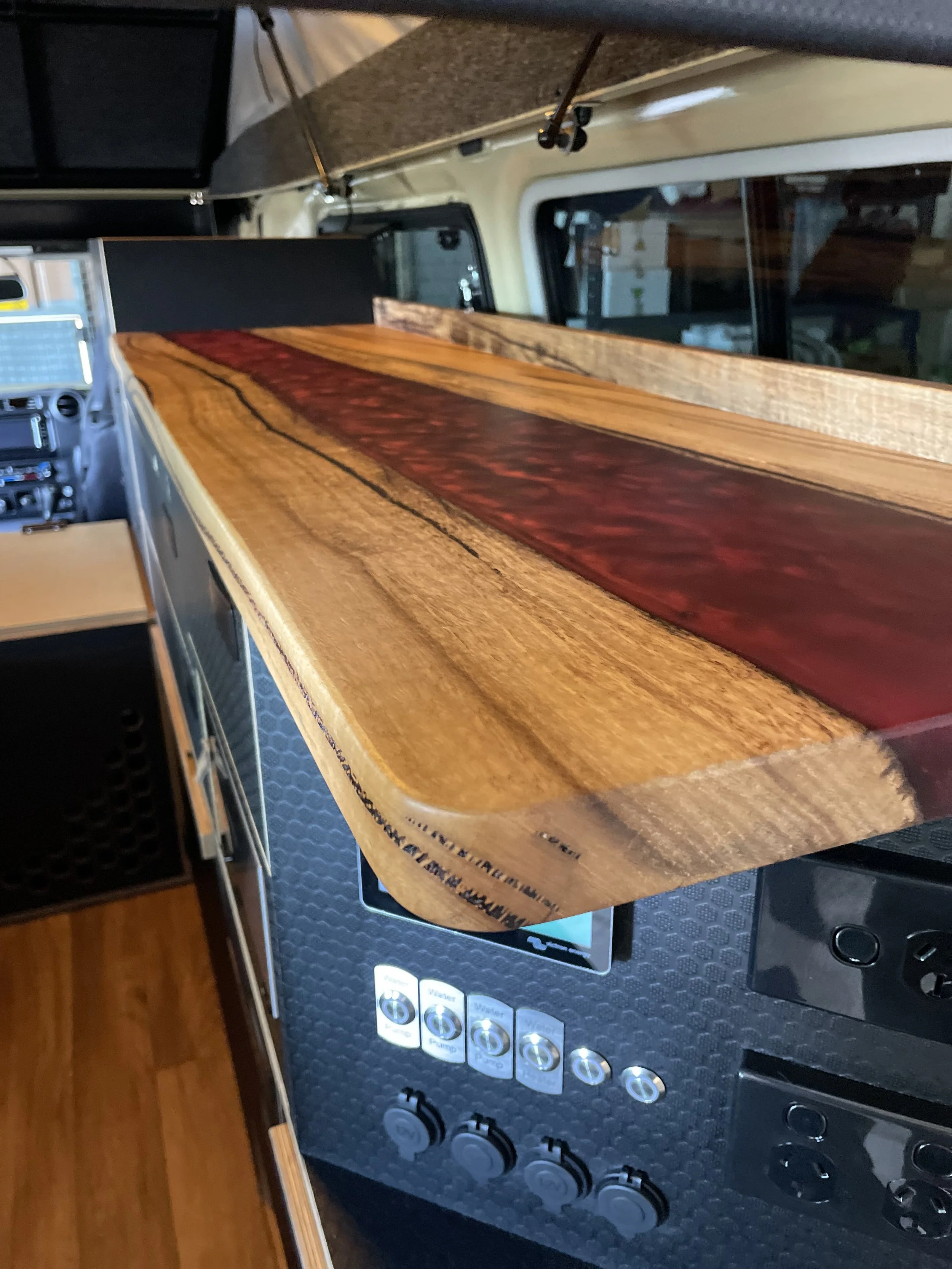

Odyssey V3 fitout for a Troopy with a poptop. This is our most customizable design yet and if you’re wanting to include a sink, this is the build for you! Like the V2, the build features full length bench space and could even be customized to one of the amazing resin top benches. The fridge is located behind the passenger seat, and we recommend using the Dometic CFX 75L fridge. You can choose to have the fridge boxed in or open without the box. Other options can include a porta potti spot, travel buddy and so much more!

Product Details - standard V3 spec includes:

  • Odyssey V3 Custom Cabinetry for 78 Series Troopcarrier

  • Available in Black Hex, Natural or White Birch Ply and natural birch ply on bed and work tops.

  • Passenger side seat box to house a table compartment for Zempire bamboo table (sold separately), large drawer on teflon - 450mm h

  • Odyssey's unique finger sliding bed - 490mm h

  • Fridge behind passenger seat to best house CFX 75L Dometic dual zone fridge (sold separately). Can be in a box.

  • Tall box behind driver’s seat to house electrical system below. 2 cupboards and tray top. Cut outs to be made for electrical outlets and screens if requested - 1070mm h

  • Long drivers side cabinet, one long worksurface with 2 drawers and lift up desk on top drawer, bi fold door below, the space can house Duoetto 10L hot water system (sold separately). Extra cupboard and drawer space.

  • Walkway 350mm wide

  • Bed dimensions 1920mm x 925mm

  • Floor Plate

    - Commercial grade vinyl

    - Stainless steel end capping

Pricing

POA

Recommended Add Ons

  • Premium Troopy Cushions

  • Kitchenette in large pull out drawer

  • Zempire 4 fold table
